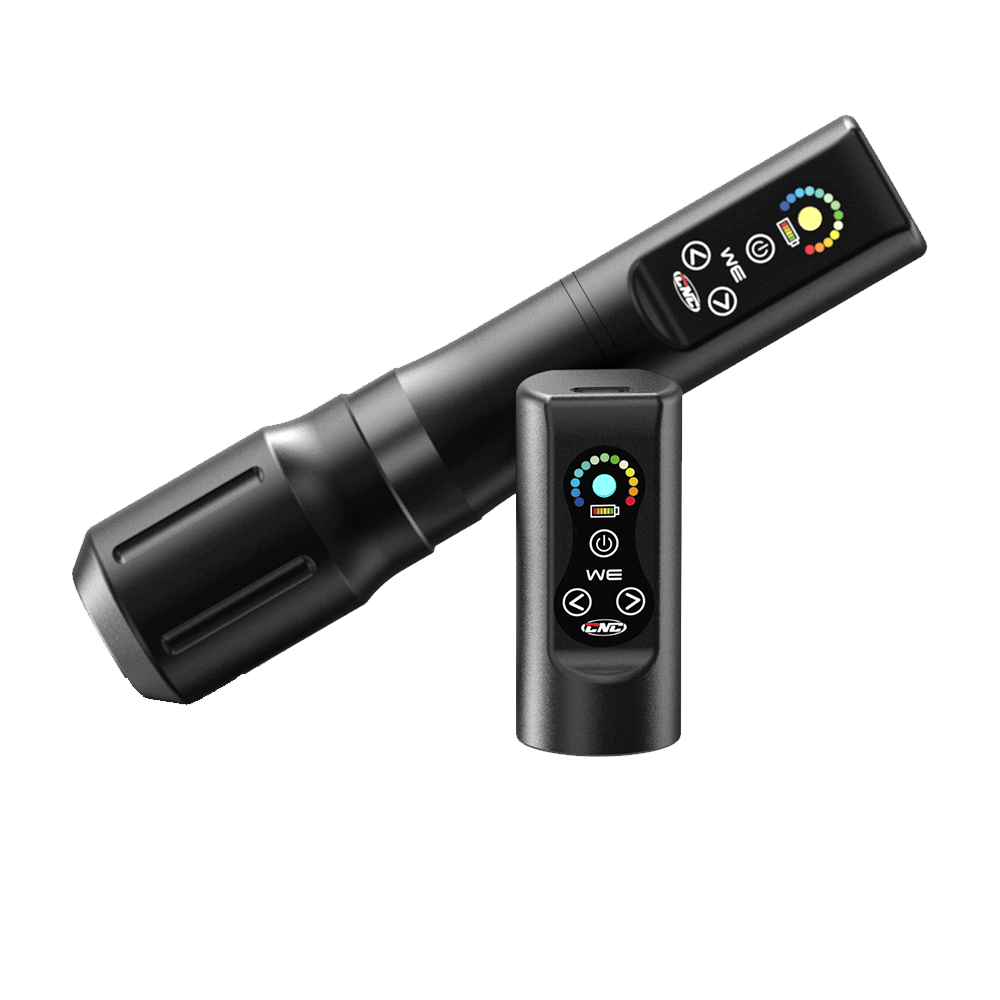

CNC WE Wireless Tattoo Pen Machine Dual Batteries

$109.99
$299.95
$109.99
BUY IN BULK & SAVE UP TO 50%
Up to 50% off

Add 6-20 products to set up your custom bundle

Customize Now

FREE Shipping
Over $149

365-Day
Warranty

Product Explanation

  • Series: CNC WE
  • SKU: CNC-M-WE
  • Support Operation Voltage:5.0V-11.0V
  • Default Start Voltage :5level 7.0V
  • Stroke:3.5mm
  • Needle Depth:0-4mm
  • Battery Type:Lithium Polymer
  • Power Capacity:900mAh
  • Motor:made by Germany
  • Length:Total141mm
  • Grip diameter:31.5mm
  • Weight:176g
  • Package including: 1 Rotary Tattoo Machine Pen + 2 Batteries

    CNC-X-WE Wireless World

    The wireless tattoo machine: CNC-X-WE is the First 100% Wireless Tattoo Pen by CNC Tattoo Supply. It inherits the stability and durability of the CNC Q series. It makes wireless work easier and breaks through the limitations of space. It’s time to cut the annoying cord off and embrace this wireless tattoo machine. CNC WE wireless tattoo pen employs a modular (3 independent modules) design that makes it easier for your routine sterilization, wrapping, usage, and maintenance.
    cnc-wireless-tattoo-machine

    2 Pcs Wireless Powerbolts

    Wireless Tattoo Pen X-WE is equipped with two PowerBolt for cyclic use and works continuously. The battery uses 900mAh lithium polymer, which has a long life and fast charging speed.

    Support work time

    3.0hour-9.0hour (Test Results)

    13 level voltage control

    5.0V-11.0V, in 0.5V steps

    Voltage output

    5.0V-11.0V. Default start voltage:7.0V

    Charging time

    1.5 hour USB Type-C Fast charge
    wireless tattoo pen cnc we 2 batteries pack wireless

    Advanced Drive & Motor

    The wireless tattoo machine X-WE is equipped with a special coreless motor-DC for tattoo work. In our extensive testing and through feedback from professional tattoo artists this machine is proving to be a truly versatile tool suited to all tattoo styles. It is marked with the motors of other professional tattoo machines. It produces a smaller volume when working, improves the working time of the power bolt, and the motor has a longer life.

    Wireless Tattoo Pen Parameters

    12V Nominal voltage6.18 mNm Nominal torque10060rpm No-load speedDC-motor Germany Motor85 % Max. efficiency<2.5m2/s Vibration value 3.5mm Replaceable Stroke
    structure of wireless tattoo machine cnc we

    Grip & Needle Depth Adjustment

    Easy to Adjust The grip supports approximately 300° rotation adjustment, and the depth of the needle changes from 0-4mm in the 300° rotation range. The grip can accurately lock the needle depth.
    • Grip diameter:31.5φ
    • Stroke Cam: 3.5mm(3.0 and 4.0mm cams also available)
    • Length: 141mm with power pack
    • Weight: 176g with a power pack, Power weight: 37.4g
    Retractable cartridge slot By retracting the cartridge slot this allows a greater needle depth range. The grip is also marked to instantly show the selected needle depth. As shown, Figure 1 means that the needle length is 0mm, and this slot protrudes from the grip. Figure 2 The needle length is 4mm, this slot is retracted about 1mm in the grip.

    Design For Lightweight & Service

    X-WE wireless tattoo pen is designed by POWERCHANNEL GROUP, and the overall shell is made of aviation aluminum. The total weight of the tattoo machine is 176g, and the Powerbolt is only 37.4g. About 80% of the weight is concentrated on the grip, giving better balance for more comfortable use. With its modular design the CNC X-WE helps us to provide you with an even better after sales service, Wireless Tattoo Machine X-WE adopts a segmented design. Divided into: grip section, drive section, power section. During the one-year warranty period, if there is a problem with any section, CNC will send the replacement grip, drive or power module to you. You only need to simply replace it. I believe this after-sales program is best for us.
    wireless-tattoo-machine-cnc-we-light-weight-design-and-for-best-service
    The wireless tattoo machine X-WE designed by CNC is the first generation wireless tattoo machine. The wireless tattoo pen motor used by CNC WE is the shortest motor drive designed by CNC technical department, retaining the power but saving on weight and space. We have also abandoned the direct drive system with the CNC X-WE, giving our pen style, wireless machine greater versatility across all tattoo styles. A complete wireless tattoo machine CNC WE Kit for various tattoo styles demand. Take the CNC X-WE one step further with our CNC WE Plus. For the upgrade version of CNC WE Plus, please refer here. By quickly and easily changing the internal cam wheel, the stroke on our CNC X-WE can be adjusted. This gives you the flexibility and ‘hit’ to use the same machine for bold lines, solid colour, or smooth black and grey, our blog “How to pick the right stroke length” will give you an idea of how to choose the right stroke for the piece
    CNC WIRELESS TATTOO MACHINES SCOPARISON CNC WE CNC CW2 WE PRO WE PLUS EM145 EM162
    MACHINE SPECS Shop Now Shop Now Shop Now Shop Now Shop Now Shop Now
    SPECIALIZATION Price $109.99 $149.99 $229.99 $399.00 $99.00 $199.00
    Type Direct Drive Direct Drive Direct Drive Direct Drive Linear Linear
    Stroke Size 3.5mm 3.0mm or 4.0mm adjustable 3.5mm 3.0mm or 4.0mm adjustable 3.5mm 3.0mm or 4.0mm adjustable 3.5mm 3.0mm or 4.0mm adjustable 3.5mm 2.2mm
    Grip Size 31.5mm 32mm 32mm 32mm 28mm 20mm
    Connectivity Wireless Wireless Wireless Wireless Wireless Wireless
    Needle Depth 0 - 4.0mm 0 - 4.0mm 0 - 4.0mm 0 - 4.0mm 0 - 4.0mm 0 – 3.2mm
    Motor Custom Germany coreless motor German coreless drive motor X-II motor customized Germany motor X-II motor customized Germany motor Germany DC-Motor Japanese durable motor
    Weight 176g 210g 188g 188g 198g 92g
    Capabilities All tattooing techniques All tattooing techniques All tattooing techniques All tattooing techniques All tattooing techniques All PMU and Cosmetic tattooing techniques
    Body Tattoo ✔️ ✔️ ✔️ ✔️
    Permanent Makeup ✔️ ✔️
